Commercial electric griddles.
Make the surface count.

Source commercial electric griddles from China. Compare nine models with 8, 12 and 16 mm plates, cooking surfaces and up to four control groups. Request a configuration for your destination.

Sourcing for the UAE, Singapore, Mexico and other destinations.

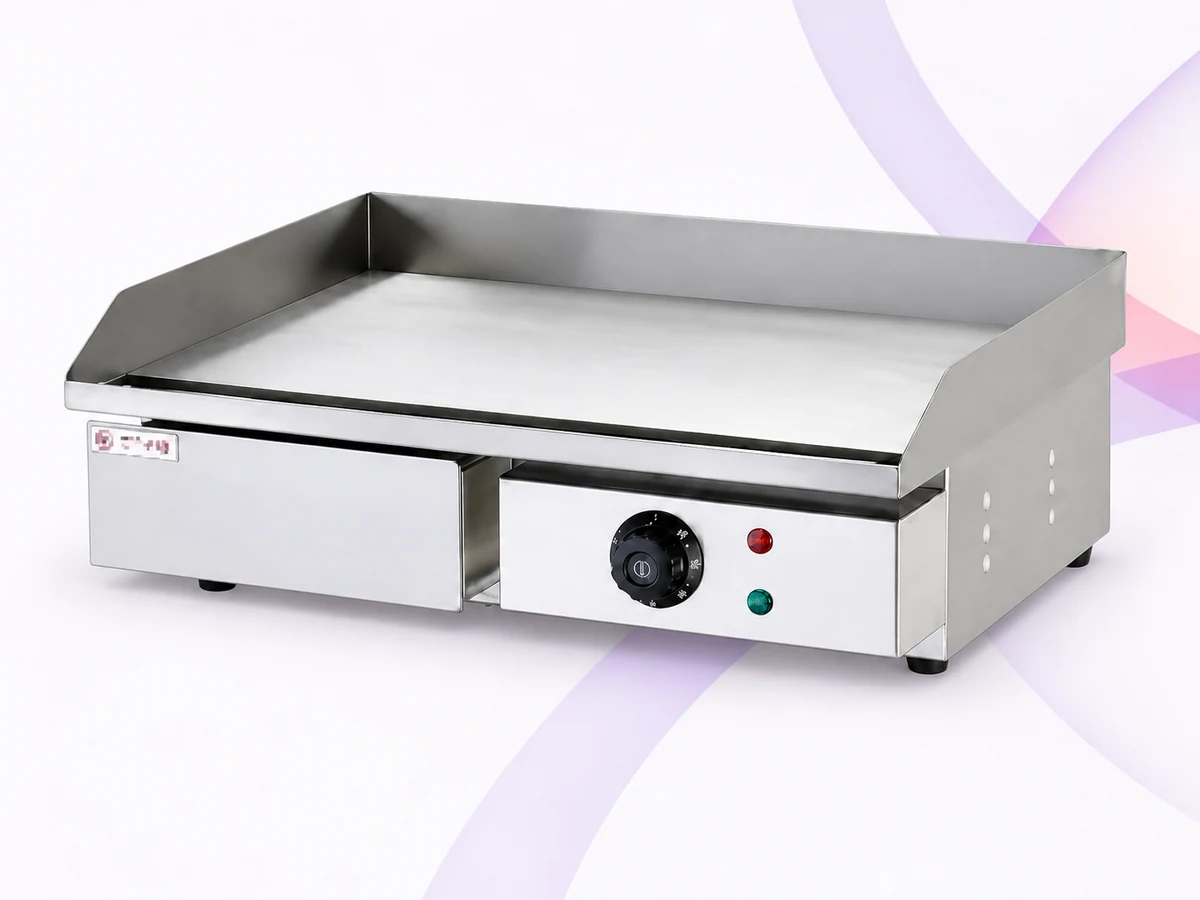

ZH-818 Electric flat griddle
540–1210 mmListed cooking-plate widths

COMPARE THE RANGE

Compare griddles by plate thickness

The cooking plate is smaller than the full appliance. Use plate dimensions to plan the food layout and overall dimensions to check the counter.

Compare the cooking surface and temperature zones in each group.

8 mm

ModelCooking surfaceTemperature zones
ZH-818
Specifications and quote
Power
3 kW
Overall dimensions
550 × 430 × 220 mm
Listed voltage
To confirm
Indicative supply priceCNY 291.10 / unitReference quantity: 1 unit
Open ZH-818 in catalogue ↗
548 × 350 mm1

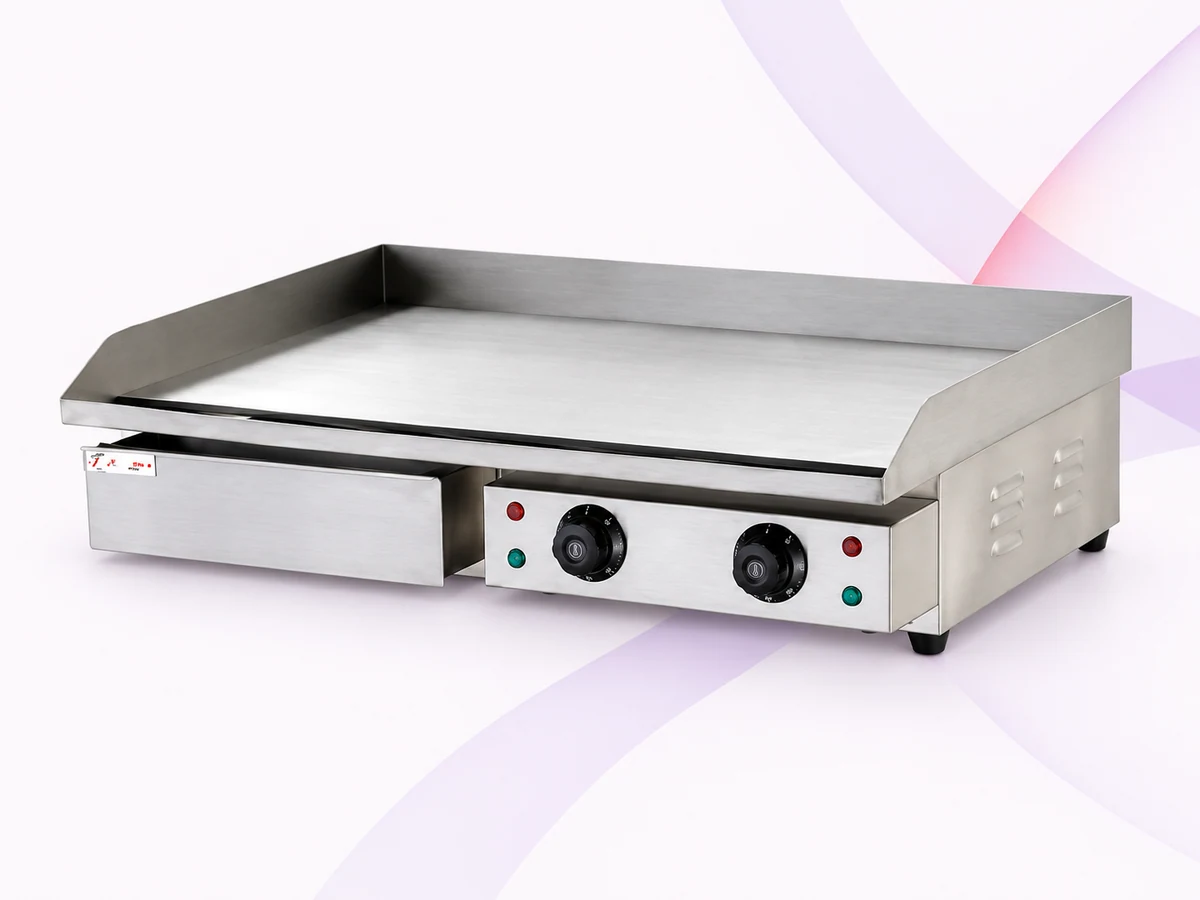

ZH-820
Specifications and quote
Power
4.4 kW
Overall dimensions
730 × 470 × 220 mm
Listed voltage
To confirm
Wholesale pricingRequest a quoteFor your quantity and destination
Open ZH-820 in catalogue ↗
728 × 400 mm2
CN-8159-DPL-550-8
Specifications and quote
Power
3 kW
Overall dimensions
550 × 430 × 200 mm
Listed voltage
220 V
540 × 350 mm1
CN-8159-DPL-730-8
Specifications and quote
Power
4.4 kW
Overall dimensions
730 × 480 × 230 mm
Listed voltage
220 V
720 × 400 mm2

12 mm

ModelCooking surfaceTemperature zones
CN-8159-DPL-550-12
Specifications and quote
Power
3 kW
Overall dimensions
550 × 430 × 250 mm
Listed voltage
220 V
540 × 350 mm2
CN-8159-DPL-730-12
Specifications and quote
Power
4.4 kW
Overall dimensions
730 × 480 × 250 mm
Listed voltage
220 V
720 × 400 mm2

16 mm

ModelCooking surfaceTemperature zones
CN-8159-DPL-620-16
Specifications and quote
Power
6 kW
Overall dimensions
620 × 620 × 380 mm
Listed voltage
220 / 380 V
610 × 490 mm2
CN-8159-DPL-920-16
Specifications and quote
Power
9 kW
Overall dimensions
920 × 620 × 380 mm
Listed voltage
220 / 380 V
900 × 490 mm3
CN-8159-DPL-1220-16
Specifications and quote
Power
12 kW
Overall dimensions
1220 × 620 × 380 mm
Listed voltage
220 / 380 V
1210 × 490 mm4

Supplier-listed specifications. Temperature range: 50–300°C. The 220 / 380 V entries are alternative versions; confirm phase, frequency and connection. Cooking-surface dimensions exclude plate thickness.

Selected models

Configure for your destination

European and US electrical configurations are available by model. Specify the installation requirements; confirm the final configuration and available certification documents in the quotation.

Review the request and add contact details next. Nothing is sent here.

Product images are retouched. Prices are indicative for the stated reference quantities. Freight and taxes are extra. Final price, availability and electrical configuration are confirmed with your quotation.

Menu applications

Meat and grill menus
Meat and grill menus
Burgers and sandwiches
Burgers and sandwiches
Breakfast and mixed menus
Breakfast and mixed menus
Rice and noodles
Rice and noodles

Construction and daily care

Plate thickness
Plate thicknessCHINENG series · features vary by model
Heating-element layout
Heating-element layoutCHINENG series · features vary by model
50–300°C temperature dial
50–300°C temperature dialCHINENG series · features vary by model
Separate heating controls
Separate heating controlsCHINENG series · features vary by model
Grease outlet and drawer
Grease outlet and drawerCHINENG series · features vary by model
Splash guard
Splash guardCHINENG series · features vary by model
Stainless-steel body
Stainless-steel bodyCHINENG series · features vary by model
Support feet
Support feetCHINENG series · features vary by model

BEFORE YOU BUY

Start with what goes on the plate.

01

Compare the two surfaces

The ZH-818 lists a 548 × 350 mm cooking surface. The ZH-820 lists 728 × 400 mm. Both list an 8 mm flat plate. Sketch a typical batch on these dimensions before choosing the larger unit.

02

Allow room around the appliance

Overall dimensions are 550 × 430 × 220 mm and 730 × 470 × 220 mm respectively. Confirm installation clearances, the grease collection arrangement and room for cleaning with the selected configuration.

03

Ask about heat and controls

Listed power is 3 kW for the ZH-818 and 4.4 kW for the ZH-820. Confirm the control arrangement, heating performance, plate material and electrical setup in the quote; power alone does not establish cooking throughput.

BUILD A COMPARABLE QUOTE

Bring the right details
to your next order.

Choose a model above to open the shared equipment planner. Set the quantity and destination, add your target price or selling price, and review your sourcing brief.

Start with ZH-818

Voltage, frequency, phase and plug follow the selected model and destination during quotation.

Include in your request

  • Model and the foods normally cooked
  • Cooking surface and available counter space
  • Required control and plate configuration
  • Quantity, destination and installation requirements
  • Grease collection, cleaning access and spare parts
Compare local prices and plan your margin

BUYING QUESTIONS

Before you decide.

Are these flat or grooved plates?

Both listed models have a flat surface. If you need a grooved or mixed surface, add that request to your sourcing brief so we can check an appropriate option.

Why is only one model priced?

We currently have an indicative reference for the ZH-818. The ZH-820 needs a quotation for the selected quantity and configuration; its price is not inferred from the smaller model.

Does the larger plate guarantee higher output?

It provides more listed cooking area. Actual output depends on the food, batch layout, heat recovery and working method. Discuss a representative batch when requesting a sample or performance check.

Can I combine griddles with fryers?

Yes. Use the shared equipment list to select both types, then request prices, packing and shipment coordination for the combination.
